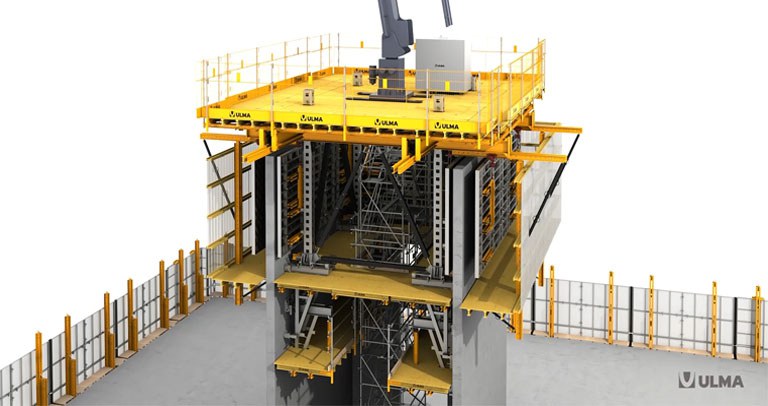

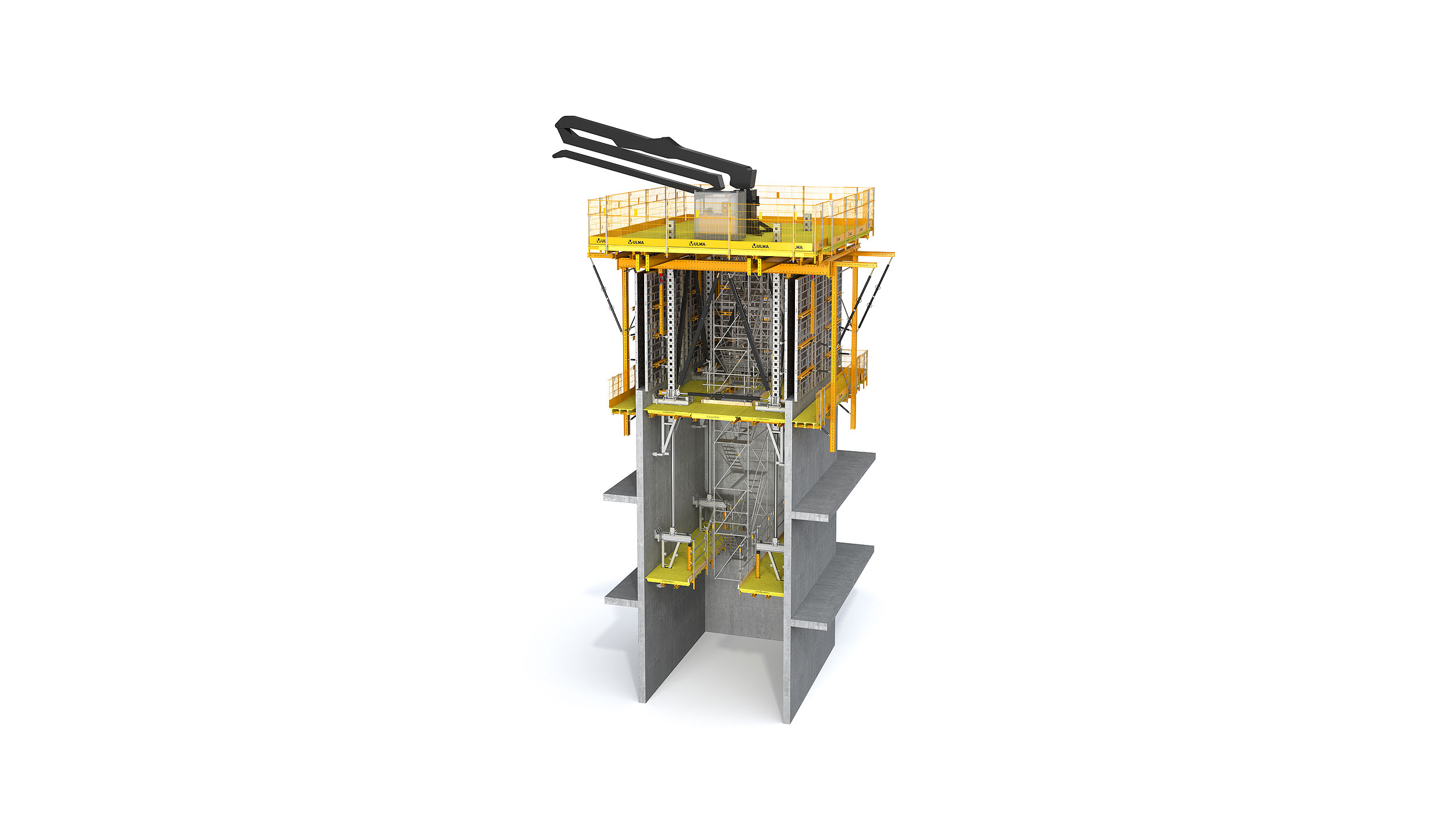

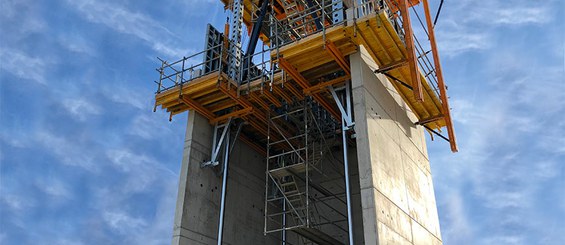

The ATR-SC is a heavy-duty self-climbing system with maximum productivity for use in the construction of large High-rise building cores, designed to minimize the handling of the formwork system on site.

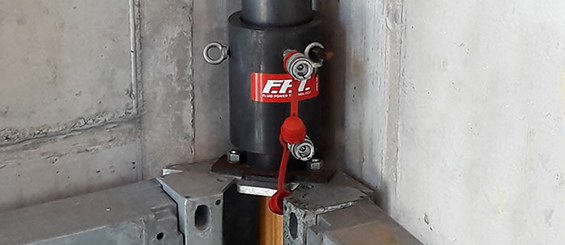

The system is lifted continuously by a single stroke cylinder, without any need for any rail, simply being supported and guided by the previously executed walls.
Fast installation of the system on the wall, as it comprises pre-assembled gangs, which can be transported directly to the site.
- High capacity (400 kN per cylinder) self-climbing system.
- It can be adapted to different construction methods such as the core ahead of the slab or the simultaneous slab and wall methods, thus minimizing materials and susbsequent joining tasks.
- Based on the MK system, the system adapts to the geometry of the core and to the pouring height required thanks to the flexible upper structure.
- Wall thickness changes are carried out by horizontally adjusting the working and climbing brackets.
- High load capacity to support placing boom.
- Quick system installation due to pre-assembled, job ready components.
- Highly efficient hydraulic system thanks to the simultaneous drive of the cylinders.
- Fast and safe stripping using stripping corners with hydraulic drive.
- Platforms with large and safe working areas.
- Minimum handling of climbing component and anchors.
- Access to stairs and working platforms are integrated into the main climbing structure.
