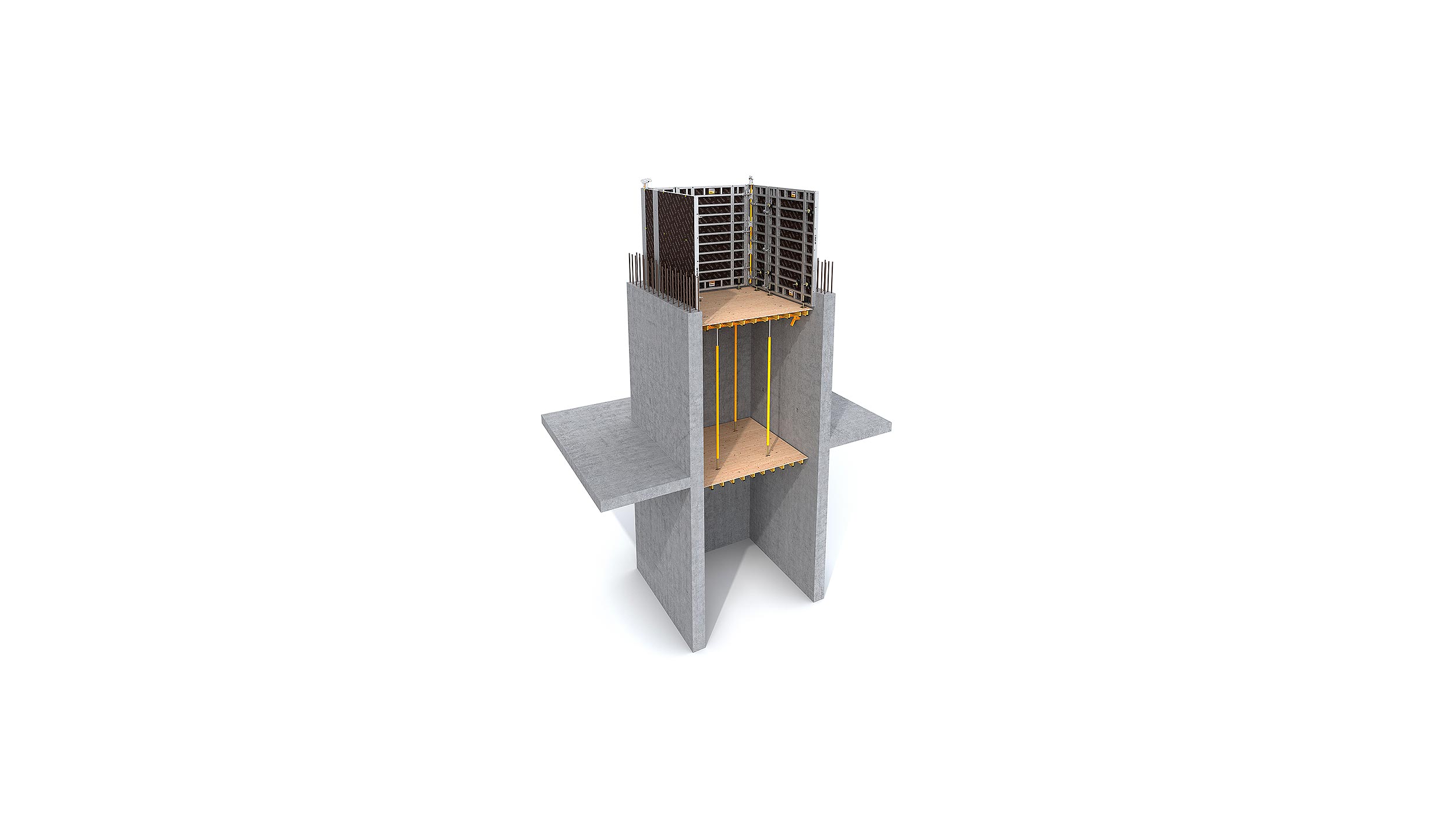

The KSP is a platform for the support of formwork and is used for elevator and staircase shafts, hollow piers or other types of cavities where formwork support is necessary. It is usually combined with conventional climbing brackets on the outside faces of the wall.
- It is commonly used with conventional climbing brackets on the opposite sides of one wall
- The KSP Platform consists mainly of walers (DU or MK) and gravity pawl bracket
- Basic system features are as follows:
- 250 mm maximum stripping distance at each side of the bracket (in intervals of 50 mm)
- Installation of cone recovery platform possible
- Different anchorage systems possible: to the wall, with GP box-outs or climbing rings
- Covers any distance with completely standard and modular material, mainly walers and timber beams
- Versatile gravity pawl bracket adaptable to all waler types and different lengths
- Easy adjustment of all kinds of formwork
- Two solutions depending on anchor type:
- Gravity pawl bracket with GP box-out: used in civil engineering construction projects, in solutions for hollow piers and gaps between walls. The bracket rests on the bottom side of the cavity made while pouring the previous stage
- Folding bracket with adjustable bracket: commonly used in building construction, especially for fair-faced concrete walls. No holes are required in the wall. The adjustable bracket rests on the folding bracket, fixed to the wall with DW15 cone
Vertical and horizontal solutions at New Residential Development in one of Toronto’s most vibrant communities: 181 Sterling - House of Assembly

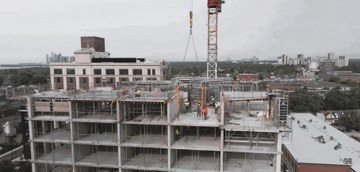

A 13-storey high-rise residential development located in one of the major areas of London, Ontario. ULMA participated in this project by offering its Horizontal and Vertical Formwork Systems.
Situated at a prime location in downtown Toronto with beautiful views of Lake Ontario, this residential facility will comprise 1, 2, and 3-bed units with various other luxurious amenities.
Modular formwork system for the construction of any vertical concrete structure. Highlights: high performance rates at minimum labour cost.
Flexible and versatile beam formwork system for civil engineering and building construction. Highly efficient and excellent concrete finish.

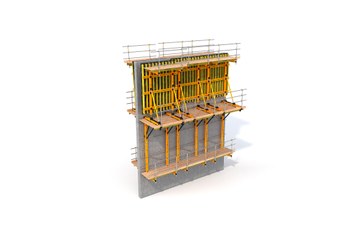

Highly flexible crane-lifted climbing system, adaptable to inclined and curved walls. Minimum transport volume.
