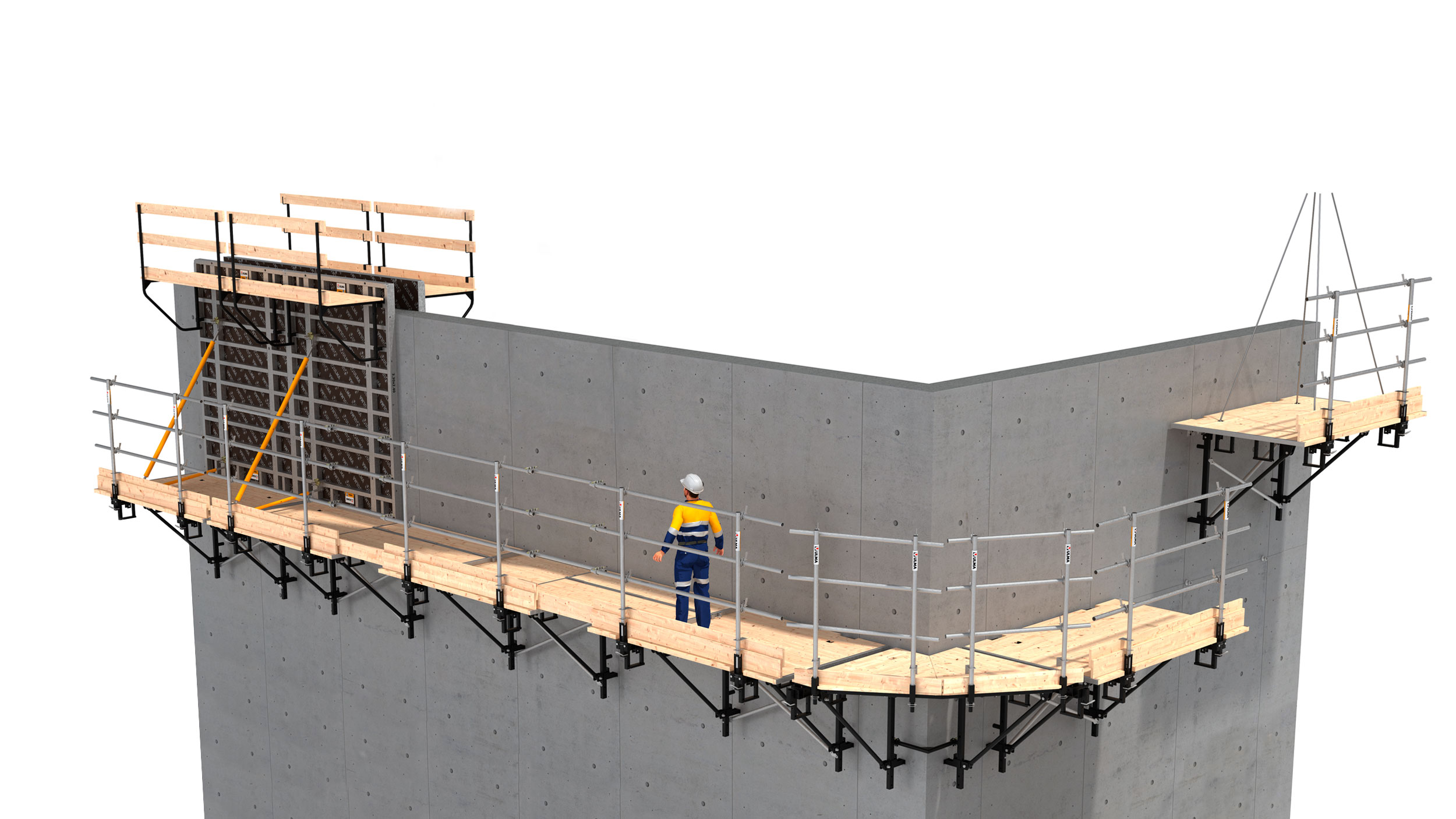

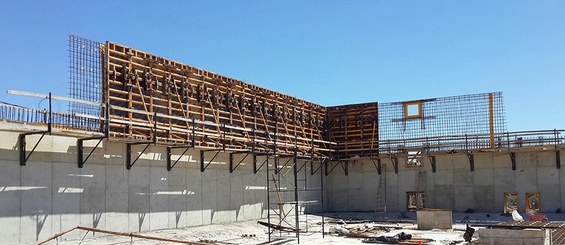

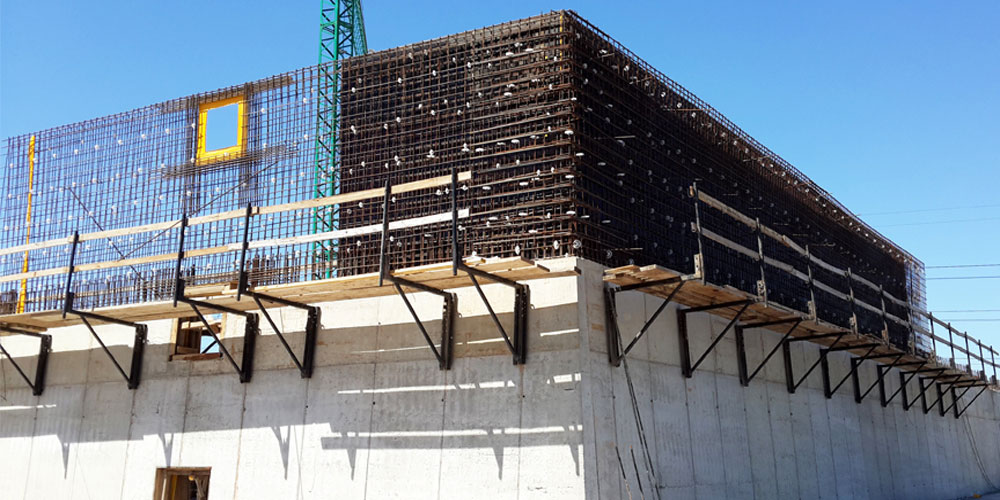

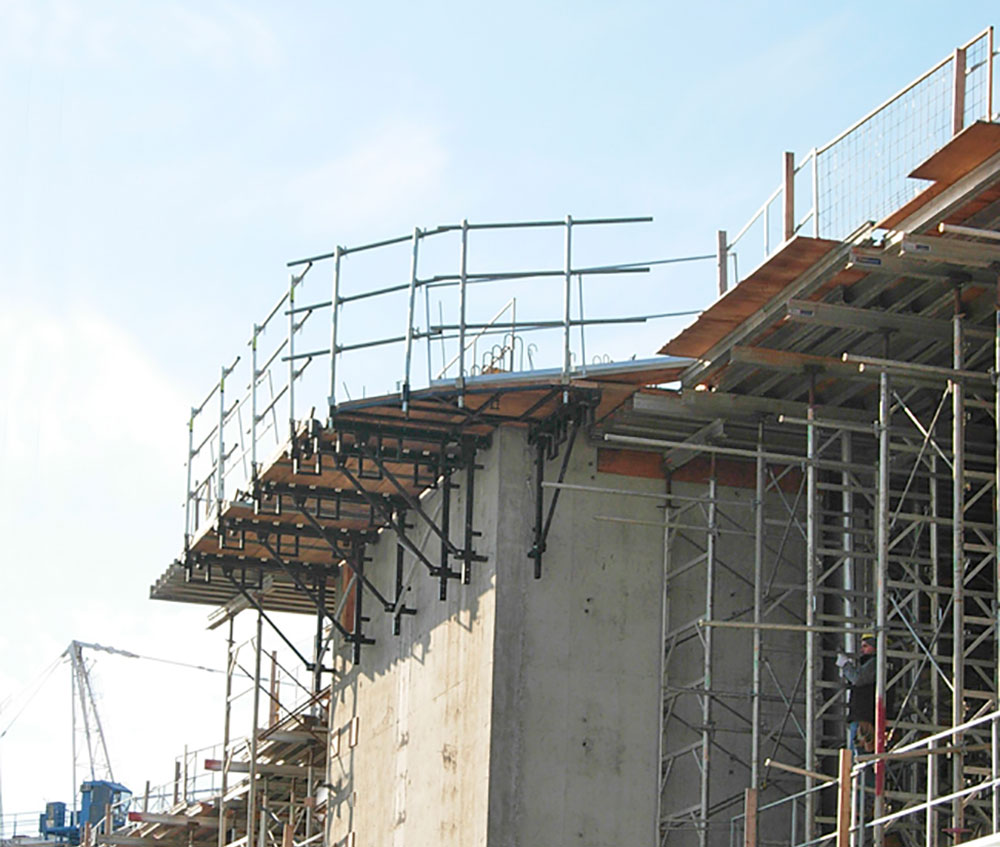

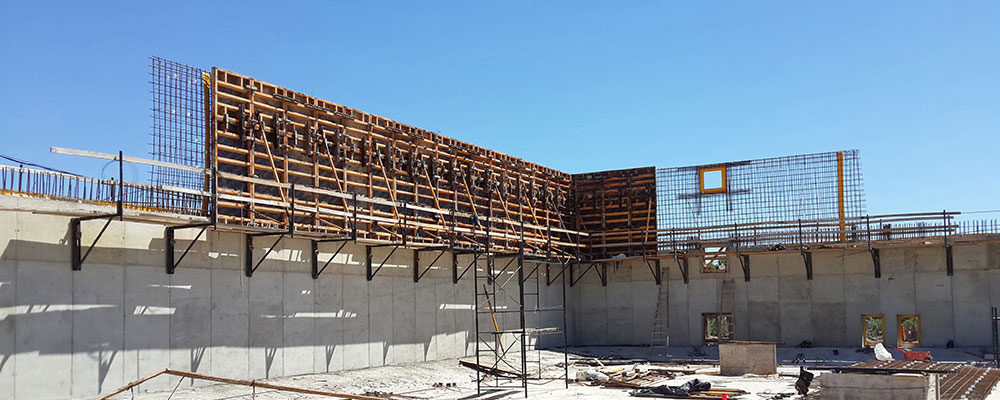

Safety system for the construction of walls of a certain height, where the wall construction is performed in stages. These working platforms function as support for the formwork and for performing subsequent tasks such as enclosures or repairs to constructed walls.
The lifting of the perimeter working platform is independent of the formwork.
- For building construction.
- Platform width: 1.3 m.
- Maximum formwork height: 3.9 m.
- Load capacity class 2 (1.5 kN/m²) according to standard EN-18211.
- Anchorage to wall with AWF or DW15 cones.
- Folding perimeter working platform, easy to transport and handle. All necessary items are incorporated.
- For building construction.
- Platform width: 1.7 m.
- Load capacity class 5 (4.5 kN/m²) according to standard EN-12811.
- Anchorage to wall with AWF or DW15 cones.
- Allows window spaces to be bridged.
Bridge over the Grand River, Ontario, Canada
The bridge over the Grand River, first new crossing of the river since 1963, links two economically important areas, Kitchener and Cambridge.

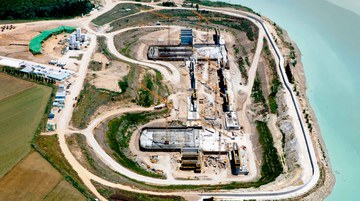

New Floodgate, Seville, Spain
The floodgate separates the water level downriver, which varies with the tides, the periods of rain and the ebb tide.
Panel Formwork ORMA
Modular formwork system for the construction of any vertical concrete structure. Highlights: high performance rates at minimum labour cost.
