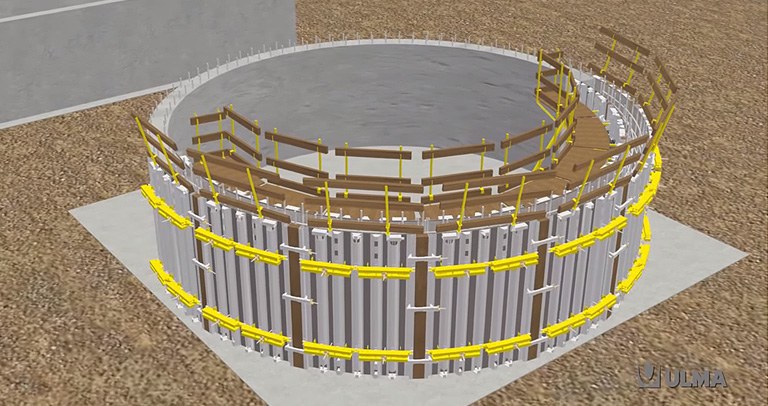

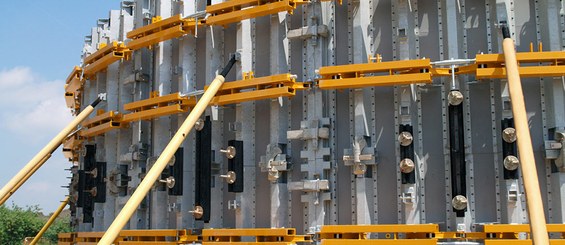

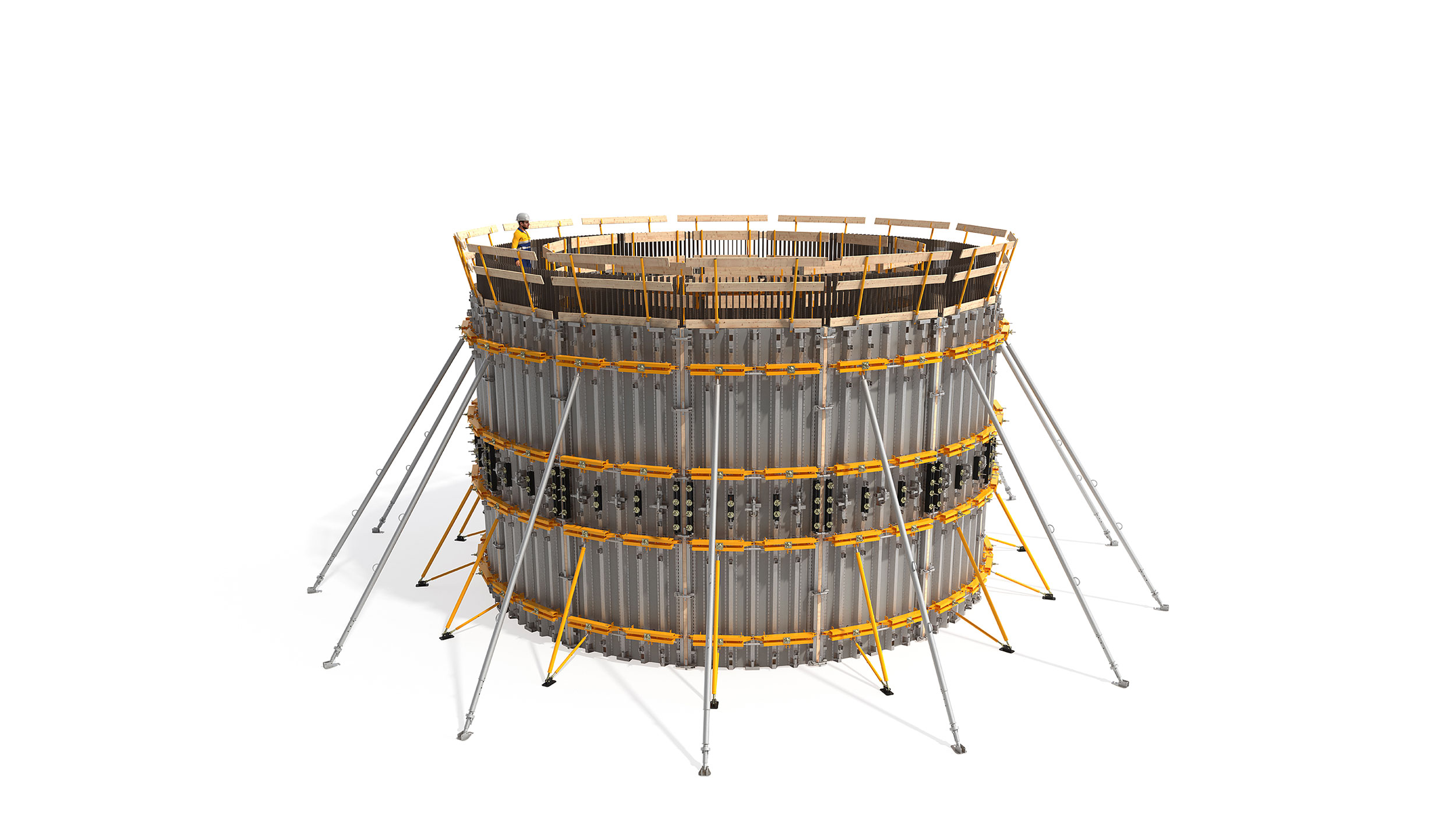

Adjustable modular circular formwork for concrete pouring of curved walls. Optimised for energy constructions, such as water tanks, gas tanks, etc.
This is a high-strength durable circular formwork, with fast curving system and excellent concrete finishes.
- Basic components of the BIRAMAX formwork system: outside panel, inside panel and clamp.
- Maximum pressure: 60 kN/m² (line 6, tab. DIN 18202).
- Minimum curve radius: 2 m.
- Models with varied panel height: 3 m; 2 m; 1.5 m.
- Models with varied panel width:
- Exterior panel: 2.25 m and 1.125 m.
- Interior panel: 2.2 m and 1.1 m.
- Guaranteed safety in the assembly and concrete pouring phases by means of different safety platforms.
- Durable, robust panels made of galvanized steel.
- Reusable plywood is easy to maintain and repair.
- Adjustable:
- Easy curving system with only 4 adjustment points.
- Simple placement of compensation plates between panels.
- Efficient:
- Excellent concrete finish thanks to the plastic-coated plywood panels.
- Only 2 anchors at height.
- The same elements are used for vertical and horizontal joints.
- A wide range of panels for all circumferences and heights. Interior and exterior panels are differentiated by colour.
- Assemblies are easy to handle with different lifting systems.
- Compatible with ULMA´s ORMA modular formwork.

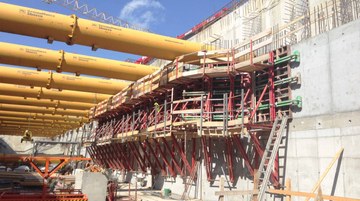

The new lock will allow river navigation between Cremona and Piacenza, after a period in which decreased water flow has made travel impracticable.
