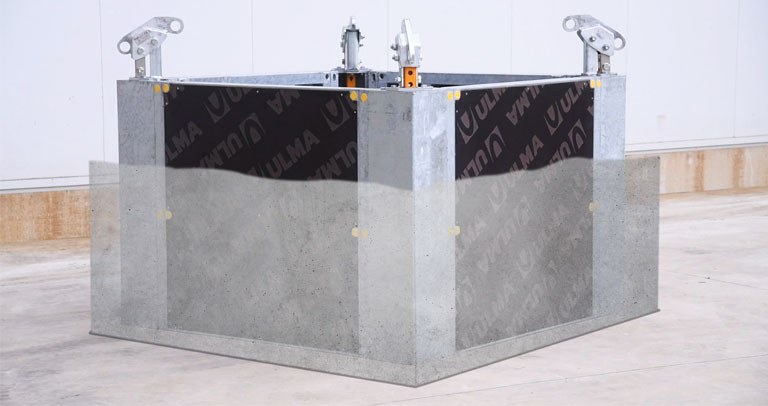

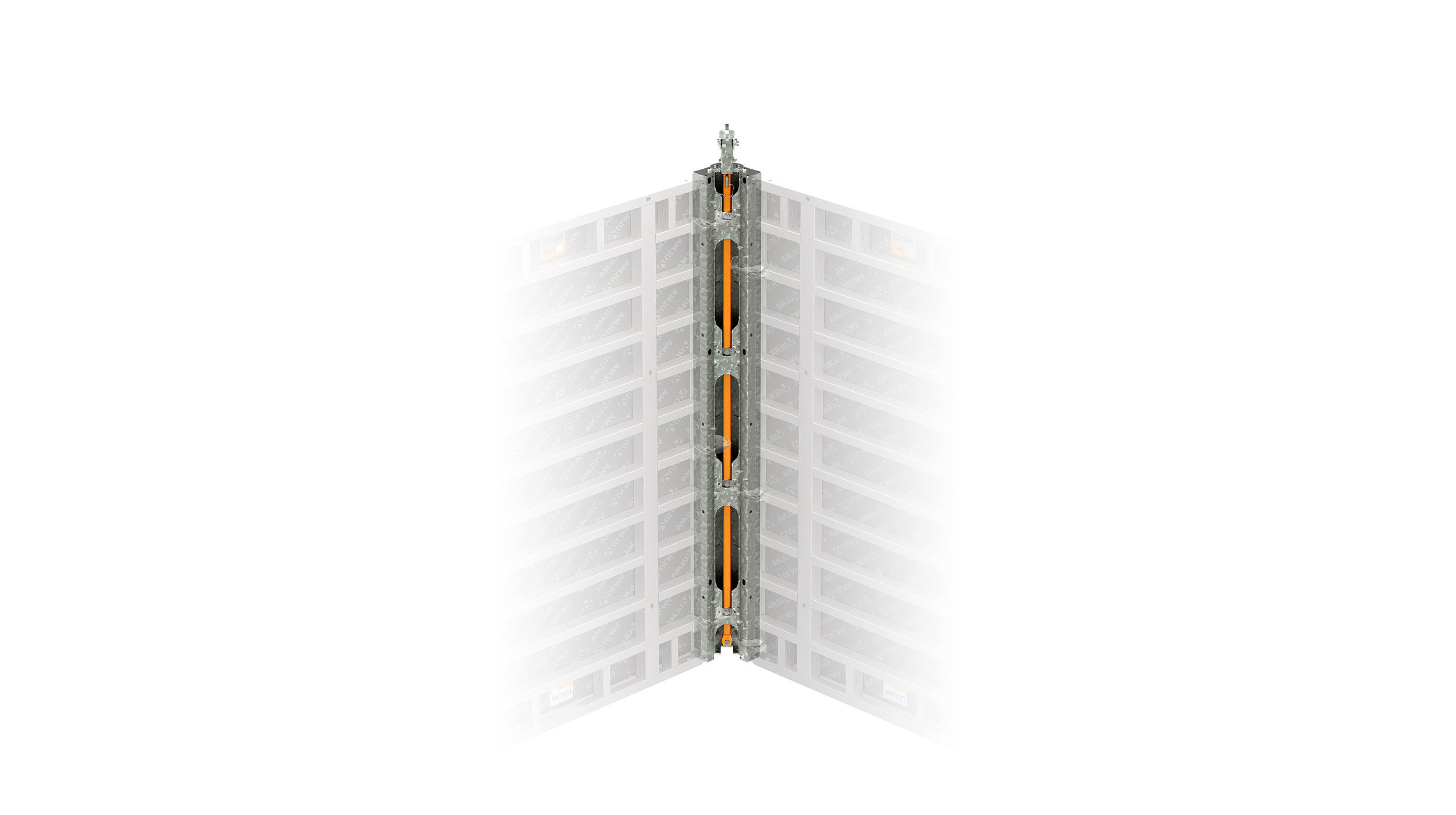

The STRIPPING CORNER MAX facilitates and simplifies wall formwork erection and stripping in elevator shafts or stairwells, hollow piers, or any other type of interior walls.
One person can quickly and safely activate the entire system with one single movement.
Saves construction time: no need to dismantle formwork panels from the stripping corner.
- The maximum pressure to withstand is 80 kN/m².
- Available in three heights: 1.2 m – 2.7 m – 3.3 m.
- STRIPPING CORNERS MAX can be easily stack to achieve different height combinations: 3.9 m - 4.5 m - 5.4 m - 6 m - 6.6 m.
- Setting and Stripping.
- Manual operation: One turn of the stripping lever is enough for the stripping/formwork of the system.
- Crane assisted operation: A single vertical movement of the crane is enough for stripping, lifting and moving the entire assembly.
- Hydraulic operation: By simply pressing a button the entire system changes from the formwork position to the stripping position and vice versa.
- (Open) pouring position dimensions: 30 x 30 cm.
- The formwork can be withdrawn by up to 50 mm from the wall (closed).
- Holes available for the passage of tie rods.
- High efficient: simple and intuitive operation for setting and stripping.
- Easy maintenance thanks to its robust galvanised steel frame and its simple and open design.
- Galvanised steel form face.
- Versatile: the STRIPPING CORNER MAX can be easily combined with other ULMA formwork systems (ORMA and BATEK).

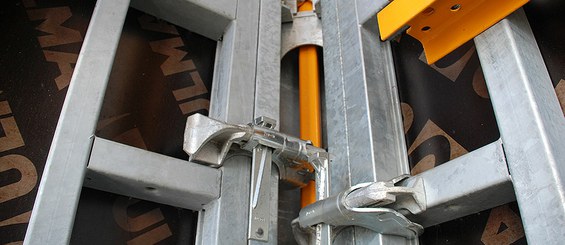

- Quick connection between panels using clamps.
Modular formwork system for the construction of any vertical concrete structure. Highlights: high performance rates at minimum labour cost.
A simple solution for supporting shaft internal formwork. Perfect for elevator and staircase shafts, hollow piers etc.

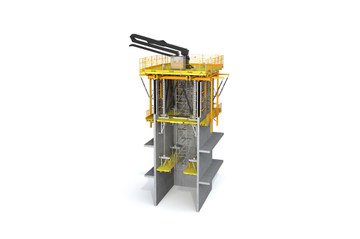

Flexible rail-guided climbing formwork for high-rise buildings. Highlights: optimised structure and easy to use.
