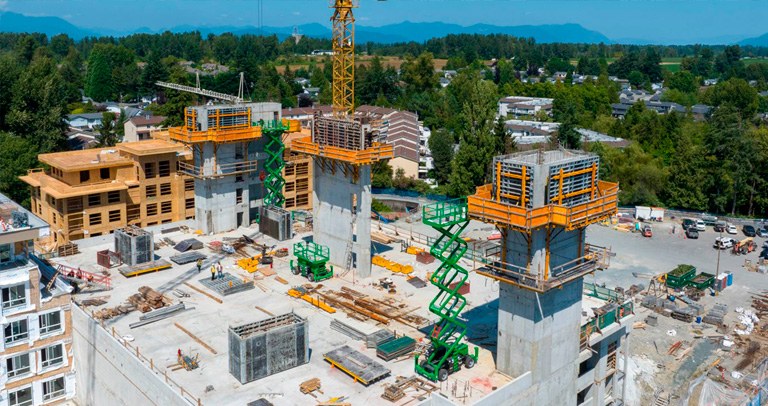

Aldergrove Town Center, British Columbia, Canada

Description

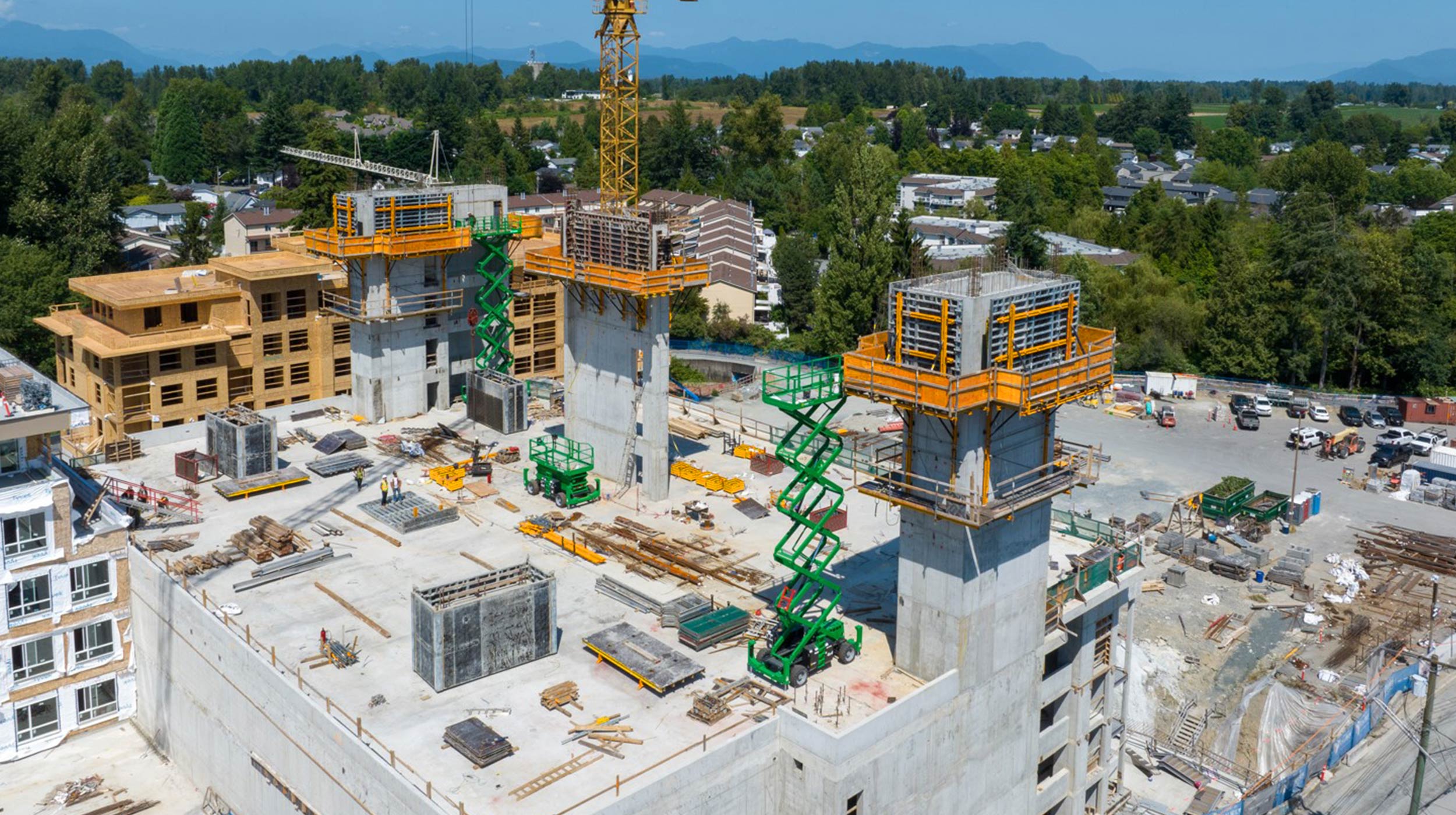

Aldergrove Town Center, located in Langley, British Columbia, has 194 residential units, including 1 and 2 bedroom homes currently under construction. This urban oasis, surrounded by the beauty of the Fraser Valley, offers easy access to transit, convenient urban services, and various amenities within walking distance.

ULMA Solution

ULMA participates in this project by providing ORMA, KSP SHAFT, and BMK CLIMBING BRACKETS.

Project Features

ORMA:

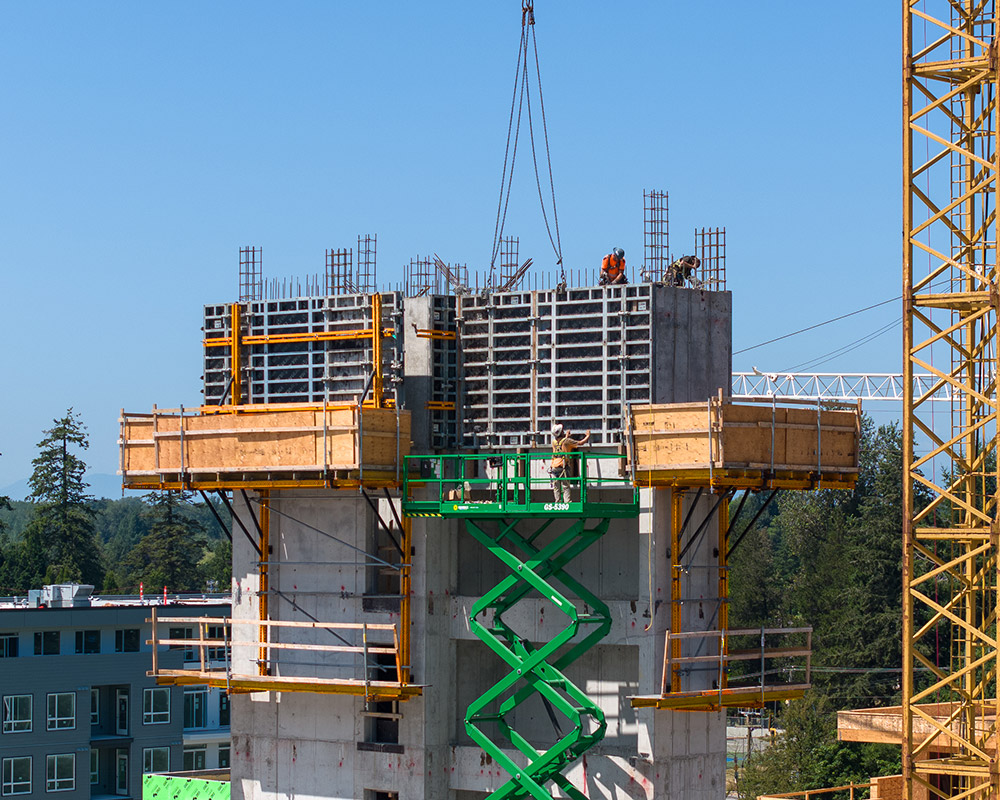

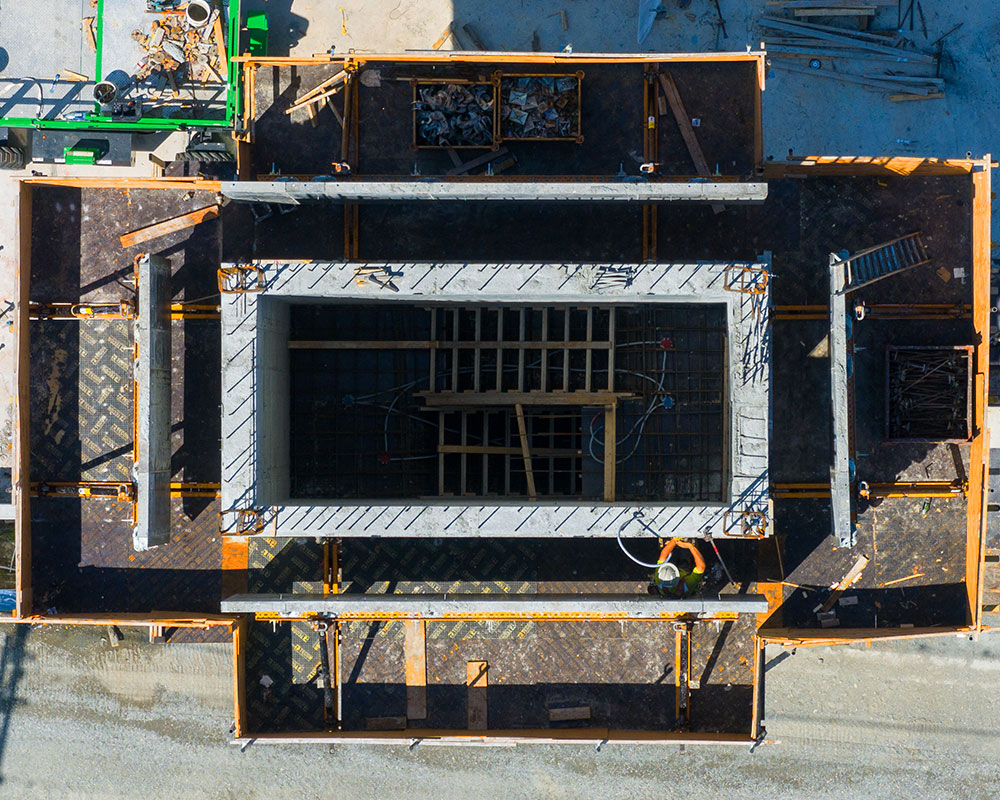

• ORMA Panels are used for two separate core walls.
• The height of vertical concrete pour was 3.2 meters. The flexibility and compatibility of ORMA Panels make it possible to cycle the formwork between all vertical elements at every floor and height.
• Stripping Corner max was used, which allows you to pick interior core at once.
• Due to ORMA’s ready-to-go system feature, less space and maintenance are required on-site.
• With ORMA’s superior surface quality and concrete surface finishing, less manpower and time are required.

 BMK 240:

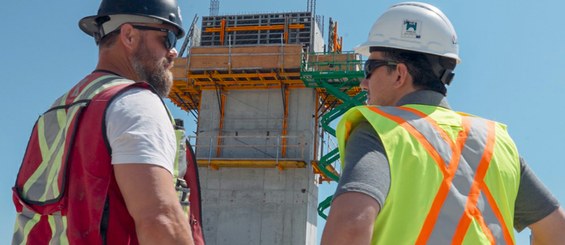

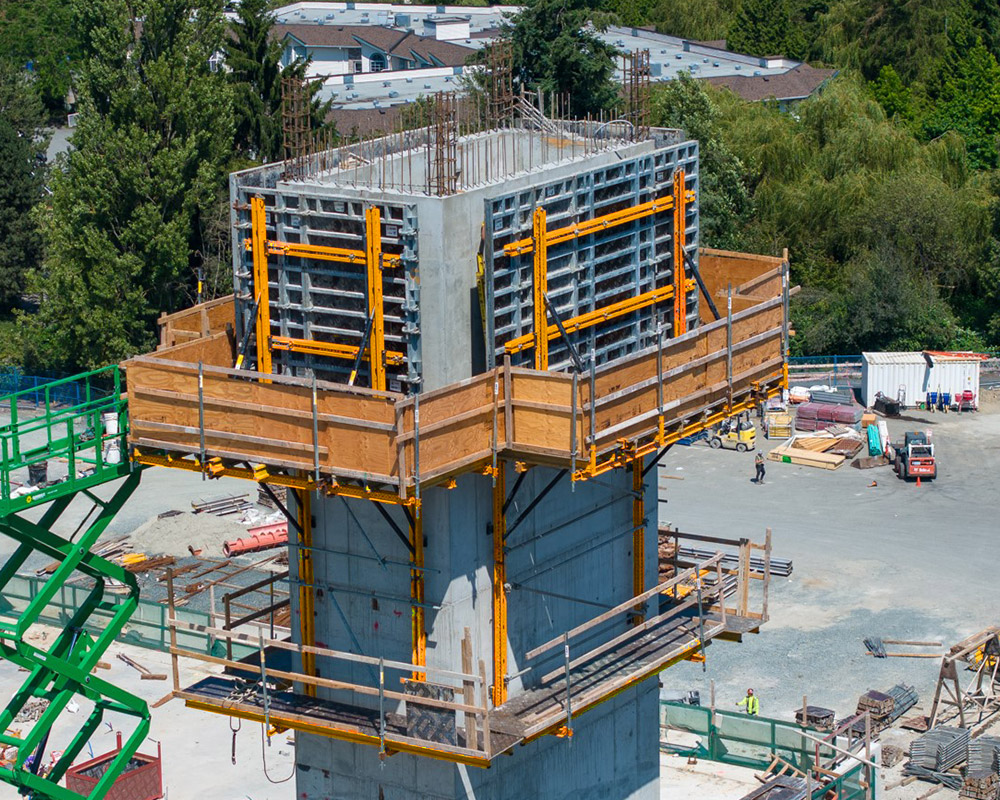

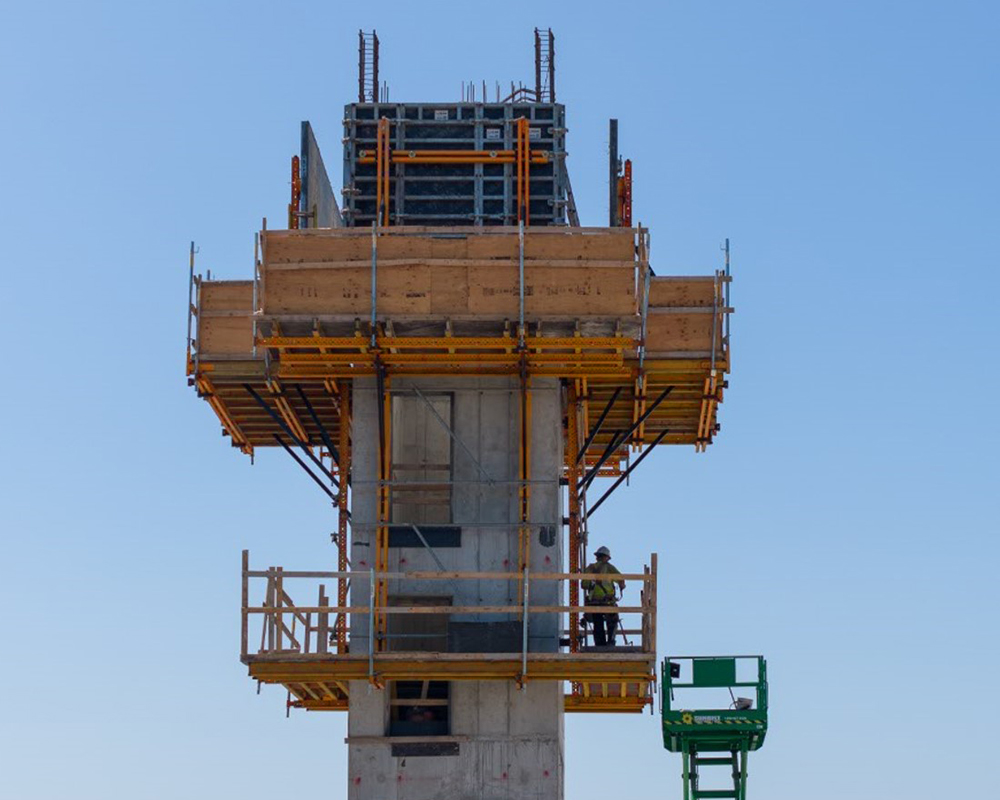

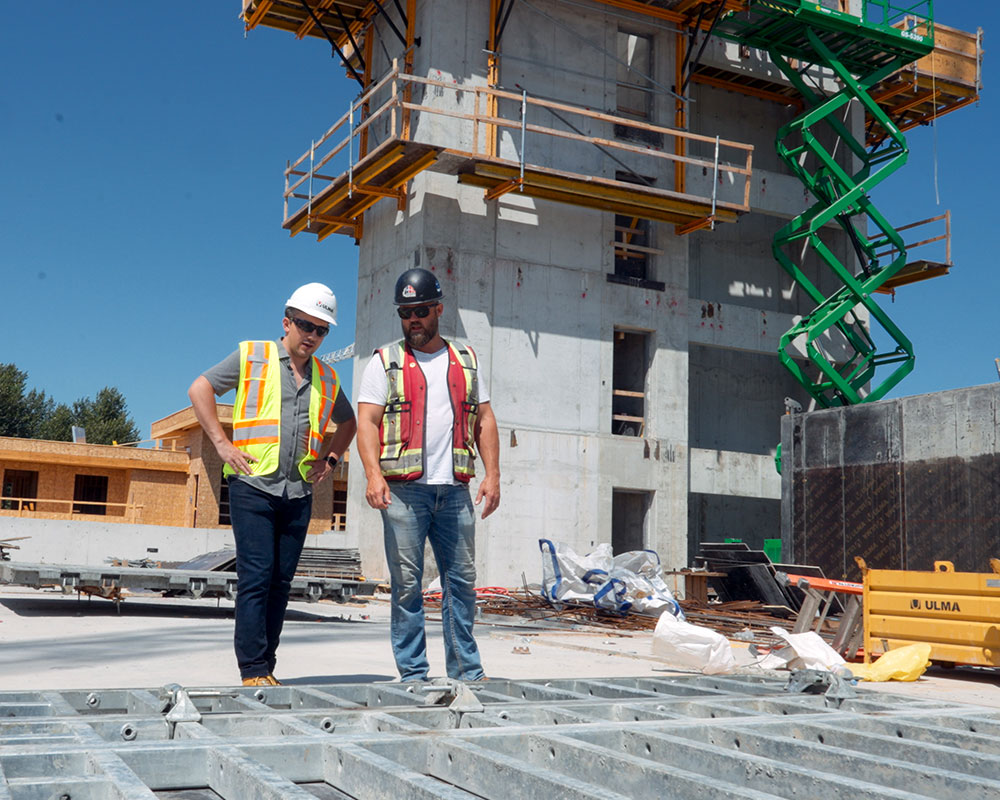

• BMK 240 brackets were used with the roll back system along with ORMA panels for two separate climbing cores from Level 5-11.
• 18 BMK Brackets were used for 9 platforms.
• BMK Roll-back with ORMA reduces the crane lifting time by 50%.
• 03 KSP Platforms were used in two separate cores.
