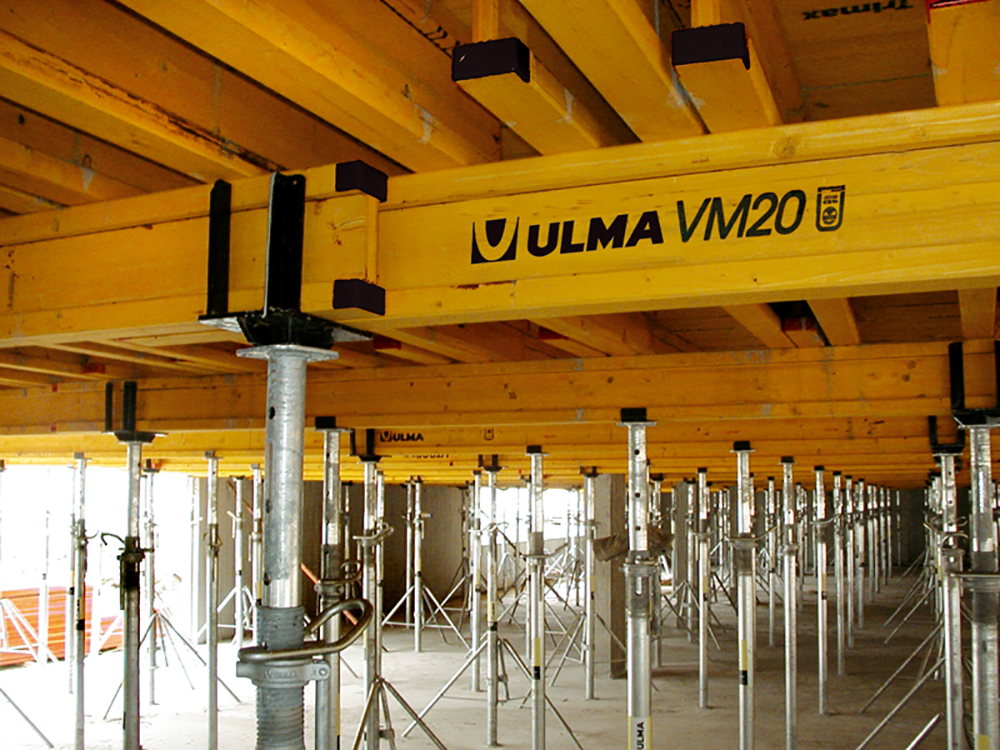

Their design and the material used guarantee a light and at the same time durable product, excellent as structural element for formwork.
- Mechanical properties according to standard EN 13377:
- Maximum permissible moment: 5 kNm.
- Permissible shear load: 11 kN.
- Stiffness (Exl): 450 kNm².
- Double T-section, height= 200 mm and width= 80 mm.
- Protected ends to withstand impact.
- Product Certificates:
- Certified according to the European standard EN 13377 of prefabricated timber formwork beams.
- PEFC – Chain of Custody.
Crossing the Fraser River, the Pattullo Bridge is a key connection between New Westminster and Surrey in British Columbia. The bridge, which is more than 80 years old and does not meet modern design standards, is being replaced with a new bridge that will improve safety and reliability for drivers, cyclists, and walkers, as well as goods movement.

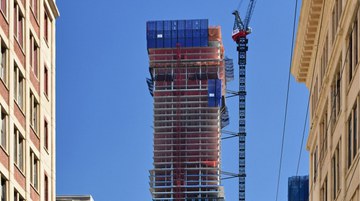

A series of buildings are being constructed along the banks of the Hudson River with spectacular views of Manhattan.

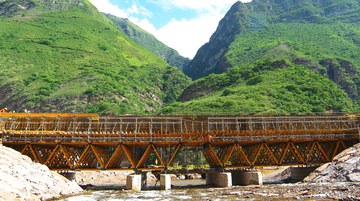

The 40 m long and 9.4 m wide Tingo Bridge is located in the Amazonian province of Bagua Grande, on the 900 km long Northern Interoceanic Highway.

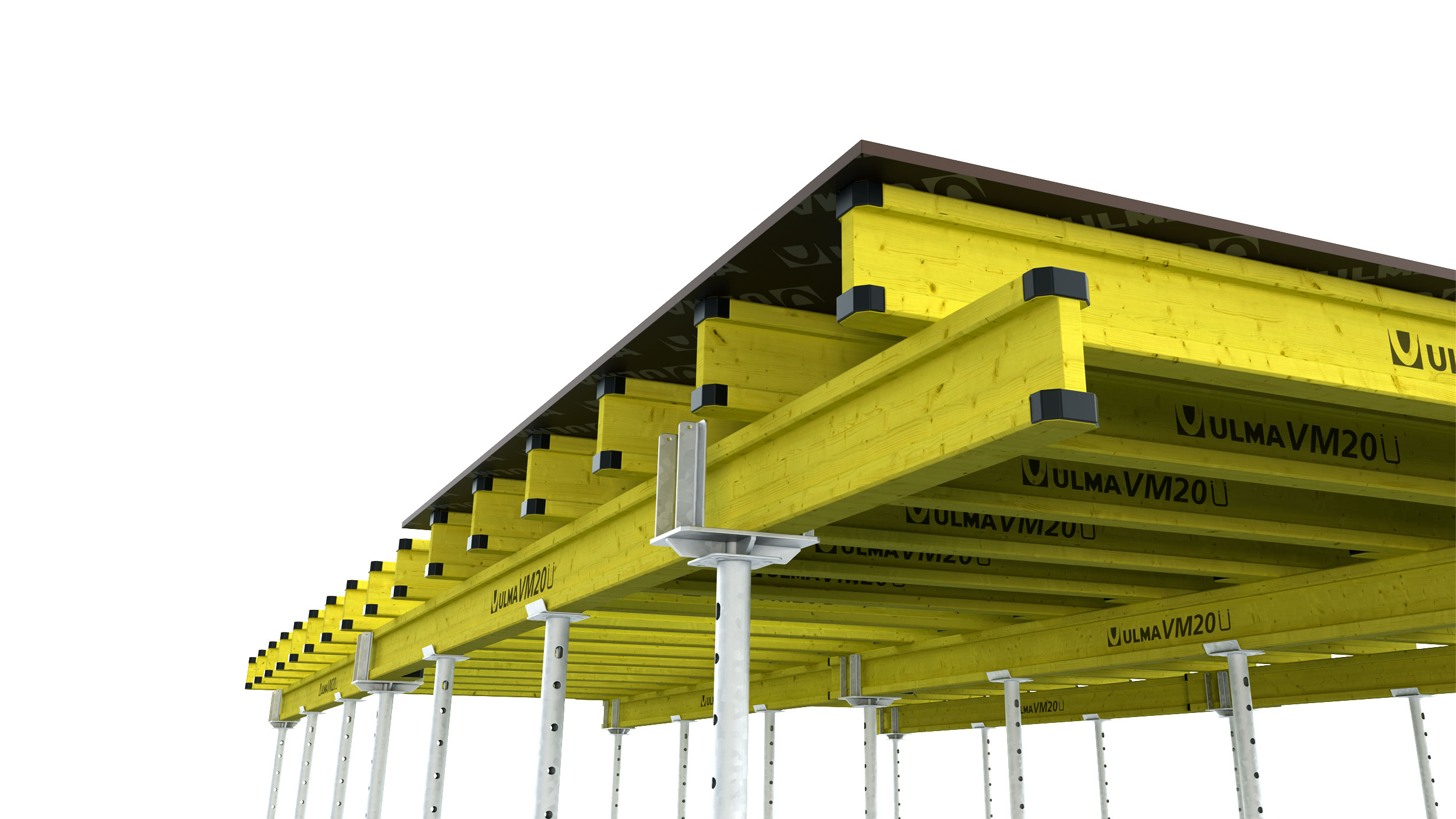

Highly versatile timber beam formwork system. Adaptable to different slab geometries; it is simple and easy to assemble. Few system components.
Hugely effective table form for regular geometry large floor slabs. Perfect for building construction. Highlights: Speeds up working pace, provides safety and excellent concrete finishes.
Flexible and versatile beam formwork system for civil engineering and building construction. Highly efficient and excellent concrete finish.
Extremely versatile beam formwork for different horizontal concrete structures. Excellent fit to the shape of sections; the ideal solution for bridge decks, among many other applications.
